A car’s knock sensor plays a crucial role in engine performance and longevity. This unassuming component, often overlooked until it fails, silently monitors engine combustion, preventing potentially damaging detonation. Understanding the subtle signs of a failing knock sensor is key to avoiding costly engine repairs. This guide will equip you with the knowledge to recognize these symptoms and take proactive steps to protect your vehicle’s engine.
From seemingly minor performance dips to more noticeable issues, a failing knock sensor manifests in various ways. Learning to distinguish these symptoms from those of other engine problems is crucial for accurate diagnosis and timely intervention. This detailed exploration will provide you with the tools to understand and address this critical engine component’s potential failures.
Understanding Knock Sensor Failure
The knock sensor is a crucial component in modern car engines, playing a vital role in optimizing performance and protecting the engine from damage. Understanding its function and potential failure points is essential for effective vehicle maintenance and repair. This section delves into the intricacies of knock sensor operation, failure causes, and diagnostic procedures.
A knock sensor’s primary function is to detect engine knocking or detonation – an uncontrolled, rapid burning of the air-fuel mixture within the cylinder. This knocking produces a characteristic high-frequency vibration that the sensor picks up. The sensor then transmits this signal to the engine control unit (ECU), which adjusts the ignition timing to prevent further knocking and potential engine damage. By precisely controlling the ignition timing, the ECU ensures optimal combustion efficiency and power output while safeguarding the engine’s integrity.
Knock Sensor Types and Variations
Knock sensors primarily fall into two categories: piezoelectric and capacitive. Piezoelectric sensors, the most common type, generate an electrical charge in response to the mechanical stress caused by engine knocking. This charge is directly proportional to the intensity of the knock. Capacitive sensors, on the other hand, utilize a change in capacitance to detect knocking. Variations within each type exist, primarily relating to their physical design and sensitivity levels, often tailored to specific engine designs and operating conditions. For example, some sensors might have a more robust construction for applications involving higher engine loads or harsher environmental conditions.
Causes of Knock Sensor Malfunction
Several factors can contribute to knock sensor failure. These can range from relatively simple issues to more complex mechanical problems.
A comprehensive list of potential causes includes:
- Wiring harness damage: Damaged, corroded, or disconnected wiring can prevent the sensor from sending accurate signals to the ECU.
- Sensor contamination: Oil, coolant, or other contaminants can interfere with the sensor’s ability to detect vibrations accurately.
- Physical damage: Impacts or excessive vibrations can physically damage the sensor, compromising its functionality.
- Sensor aging and wear: Over time, the sensor’s sensitivity can degrade, leading to inaccurate readings or complete failure.
- ECU malfunction: While less common, a faulty ECU can misinterpret signals from a perfectly functional knock sensor.
- Engine issues: Problems such as low octane fuel, incorrect air-fuel mixture, or carbon buildup can exacerbate knocking, potentially leading to sensor overload and failure.
Knock Sensor Diagnostic Flowchart
Diagnosing a faulty knock sensor requires a systematic approach. The following flowchart illustrates a typical diagnostic process:
The flowchart would visually represent the following steps:
- Check for diagnostic trouble codes (DTCs): Use an OBD-II scanner to retrieve any stored codes related to the knock sensor circuit.
- Inspect wiring and connectors: Visually inspect the wiring harness for damage, corrosion, or loose connections.
- Check sensor resistance: Use a multimeter to measure the sensor’s resistance, comparing it to the manufacturer’s specifications.
- Perform a knock test (if applicable): Some diagnostic tools allow for simulating knock conditions to assess sensor responsiveness.
- Inspect for engine problems: Rule out other potential causes of knocking, such as low octane fuel or carbon buildup.
- Replace the knock sensor (if necessary): If all other checks are satisfactory, replace the knock sensor.
Recognizing the 10 Symptoms
A failing knock sensor can manifest in various ways, impacting engine performance and fuel efficiency. Understanding these symptoms is crucial for timely diagnosis and repair, preventing more extensive engine damage. The following ten symptoms are listed in order of their typical frequency of appearance, though the order might vary depending on vehicle specifics and the severity of the sensor failure.
Early detection is key to minimizing potential engine damage. While some symptoms might seem minor initially, ignoring them could lead to more significant issues and costly repairs.
Symptom Frequency and Description
The following list details ten common symptoms of a failing knock sensor, ordered from most to least frequently observed. Each symptom is accompanied by a description and potential related problems.
- Reduced Engine Power: A significant decrease in engine power output is often an early indicator. The engine control unit (ECU), relying on incorrect knock sensor data, may retard ignition timing excessively, limiting power. This can be accompanied by sluggish acceleration and difficulty climbing hills.
- Poor Fuel Economy: The engine’s inefficient operation due to improper ignition timing, resulting from a faulty knock sensor, directly impacts fuel consumption. You may notice a significant increase in fuel usage compared to your vehicle’s normal performance.

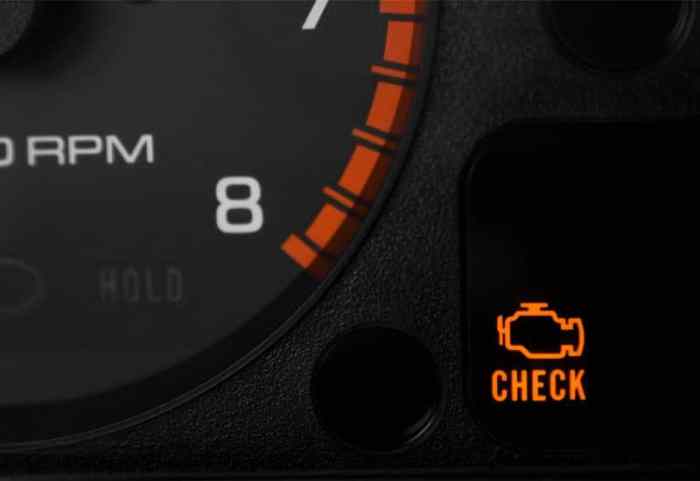

- Check Engine Light (CEL): The CEL illuminates when the ECU detects a malfunction within the engine’s systems. A failing knock sensor frequently triggers this warning light, often accompanied by a diagnostic trouble code (DTC) related to the knock sensor circuit.
- Rough Idle: The engine may exhibit rough idling, characterized by shaking or vibrations at idle speed. Incorrect ignition timing, caused by a malfunctioning knock sensor, disrupts the smooth combustion process, resulting in this rough idle.
- Engine Misfires: Erratic ignition timing can lead to engine misfires, resulting in a sputtering or hesitant engine performance. This is a more serious symptom, often accompanied by a decrease in power and fuel efficiency.
- Backfiring: In severe cases, a faulty knock sensor can lead to backfiring through the intake or exhaust. This is a loud and potentially damaging event that indicates significant engine malfunction.
- Hesitation During Acceleration: The engine may hesitate or stumble during acceleration, indicating a problem with the ignition timing or fuel delivery. A faulty knock sensor can contribute to this erratic behavior.
- Pinging or Knocking Sounds: While not always directly caused by a failing knock sensor, the absence of the expected knock detection, due to a faulty sensor, can exacerbate existing engine knocking. This can result in a persistent pinging or knocking noise from the engine compartment.
- Increased Emissions: Inefficient combustion due to incorrect ignition timing can lead to higher levels of harmful emissions. This may result in a failure during an emissions test.
- Engine Stalling: In extreme cases, a severely malfunctioning knock sensor can cause the engine to stall, especially at idle or under load. This is a significant symptom indicating the need for immediate attention.
Comparison of Symptoms with Other Engine Problems
It’s crucial to differentiate knock sensor failure from other potential engine issues. The following table helps in this process.
| Symptom | Knock Sensor Failure Probability | Other Possible Causes | Recommended Diagnostic Steps |
|---|---|---|---|
| Reduced Engine Power | High | Faulty spark plugs, fuel injectors, air filter, clogged catalytic converter | Check spark plugs, fuel pressure, air intake system, and perform a catalytic converter efficiency test. Scan for DTCs. |
| Poor Fuel Economy | Medium | Driving habits, tire pressure, faulty oxygen sensor, air leaks | Review driving habits, check tire pressure, inspect for air leaks, and perform oxygen sensor diagnostics. Scan for DTCs. |
| Check Engine Light | High | Wide range of engine issues | Use an OBD-II scanner to retrieve diagnostic trouble codes (DTCs). |
| Rough Idle | Medium | Vacuum leaks, dirty throttle body, faulty ignition components | Inspect vacuum lines, clean the throttle body, check ignition system components. |
Visual Inspection of the Knock Sensor

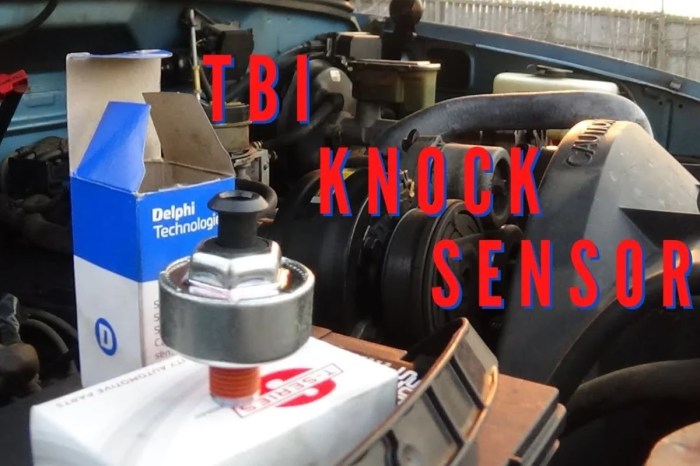

While a visual inspection alone won’t definitively diagnose a faulty knock sensor, it can help identify obvious physical damage. The knock sensor is typically a small, cylindrical device, often located on the engine block. Its location varies by vehicle make and model, so consulting a repair manual is advisable.
Carefully examine the sensor for any signs of damage, including: cracks in the sensor body, loose or damaged wiring, corrosion on the connector, or any physical impact damage. Look for signs of oil leaks near the sensor, which may indicate a damaged seal. Note the color of the sensor connector; significant discoloration may point to overheating. Compare your findings to pictures or descriptions in a repair manual to determine if the damage is significant enough to warrant sensor replacement.
Impact and Mitigation of Knock Sensor Issues
Ignoring a failing knock sensor can lead to significant engine damage and costly repairs. The knock sensor plays a crucial role in engine protection, and its malfunction can have far-reaching consequences on both performance and the engine’s lifespan. Understanding these impacts is key to making informed decisions about repair and maintenance.
A malfunctioning knock sensor prevents the engine control unit (ECU) from accurately detecting engine knock (detonation). This uncontrolled detonation can cause significant damage to internal engine components, including pistons, connecting rods, and the crankshaft. The resulting damage can lead to reduced engine power, rough running, and eventually catastrophic engine failure. Furthermore, the lack of precise timing adjustments due to sensor failure will negatively affect fuel efficiency, leading to increased fuel consumption.
Repair Costs: Knock Sensor Replacement versus Ignoring the Problem
Replacing a faulty knock sensor is relatively inexpensive compared to the potential costs associated with engine damage caused by ignoring the problem. A knock sensor replacement typically involves a modest labor cost and a relatively low-cost part. The total cost might range from $100 to $500 depending on the vehicle make and model, labor rates, and the accessibility of the sensor. However, ignoring the problem can lead to thousands of dollars in engine repair or even complete engine replacement, potentially reaching several thousand dollars. In some cases, the damage might be so extensive that the vehicle becomes a write-off.
Replacing a Knock Sensor: A Step-by-Step Guide
Replacing a knock sensor requires some mechanical aptitude and the right tools. Improper installation can damage the sensor or surrounding components, so careful adherence to safety precautions is essential.
Before beginning, it’s crucial to consult your vehicle’s repair manual for specific instructions and torque specifications. This will vary greatly depending on the make, model, and engine type of the vehicle.
- Safety First: Disconnect the negative terminal of the battery before starting any work. This prevents accidental electrical shorts and ensures your safety.
- Locate the Sensor: Consult your vehicle’s repair manual to pinpoint the exact location of the knock sensor. It’s usually mounted on the engine block near the cylinders.
- Gather Tools: You’ll need a socket wrench (the correct size for the sensor’s mounting bolt), a ratchet, a breaker bar (potentially), penetrating oil (if the bolt is stubborn), and possibly a torque wrench to ensure proper tightening.
- Disconnect the Wiring Harness: Carefully disconnect the electrical connector from the knock sensor. Take note of its orientation for reassembly.
- Remove the Sensor: Carefully loosen and remove the sensor’s mounting bolt. Penetrating oil may be necessary if the bolt is seized. Be gentle to avoid damaging the threads.
- Install the New Sensor: Carefully install the new knock sensor, ensuring a clean and secure fit. Avoid cross-threading.
- Tighten the Bolt: Tighten the mounting bolt to the manufacturer’s specified torque using a torque wrench. Over-tightening can damage the sensor or engine block.
- Reconnect the Wiring Harness: Carefully reconnect the electrical connector to the new knock sensor, ensuring it’s securely attached.
- Reconnect the Battery: Reconnect the negative battery terminal.
- Test the System: Start the engine and monitor for any improvement in engine performance or error codes.
Last Recap
Ignoring a failing knock sensor can lead to significant engine damage, resulting in costly repairs or even engine replacement. By recognizing the ten symptoms Artikeld above and understanding their potential impact, you can take proactive measures to protect your vehicle’s engine health and longevity. Regular maintenance and prompt attention to any unusual engine behavior are essential for preventing major issues and ensuring optimal performance. Early diagnosis and repair are always the most cost-effective solutions.
